digital Surface Models (DSMs) in QGIS: A Comprehensive Guide
Introduction
Digital Surface Models (DSMs) are 3D representations of the Earth’s surface, including all objects on it such as buildings, trees, and other vegetation. They are distinct from Digital Elevation Models (DEMs), which only depict the bare-earth terrain. DSMs are invaluable tools in a wide range of applications, including urban planning, environmental monitoring, disaster management, and more. This article will provide a comprehensive overview of working with DSMs in the open-source Geographic Information System (GIS) software QGIS.
1. Understanding DSMs

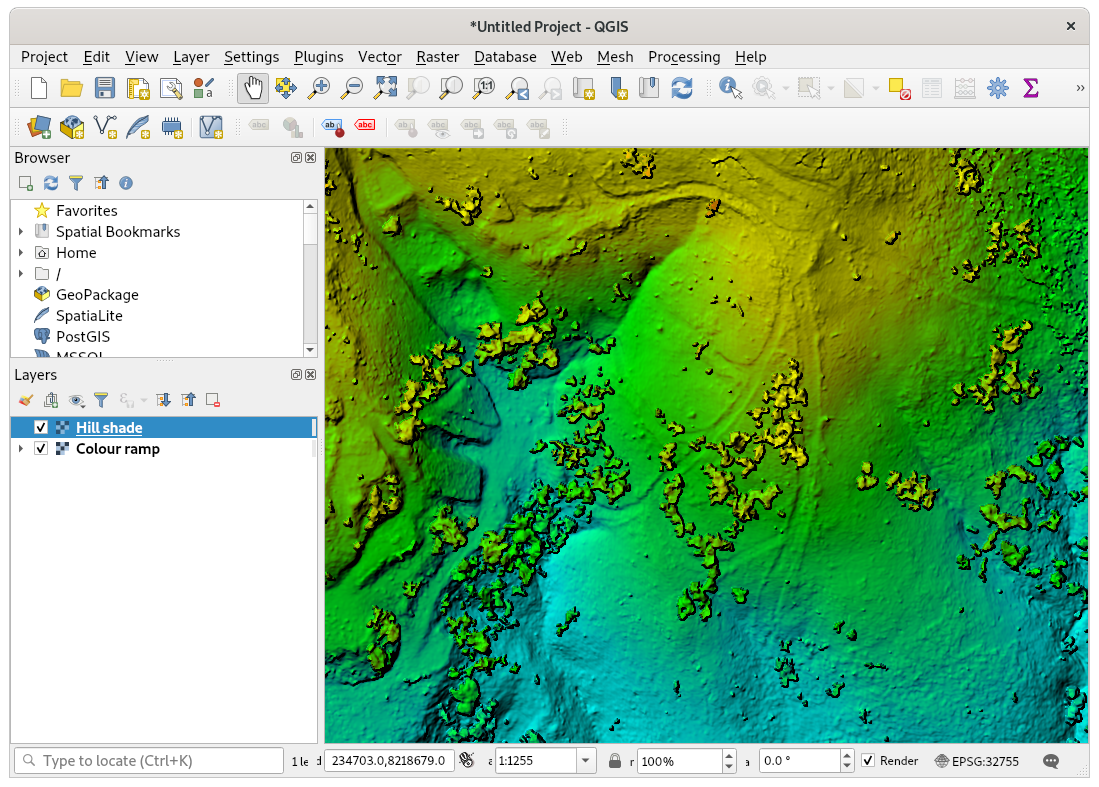

Making digital surface/terrain models pop Tutorial Orr
Data Acquisition: DSMs can be generated through various methods:
LiDAR (Light Detection and Ranging): A highly accurate method that uses laser pulses to measure distances to the ground and objects.
Aerial and Satellite Imagery: Photogrammetry techniques extract height information from overlapping images.
Interferometric Synthetic Aperture Radar (InSAR): Radar technology can be used to create DSMs, especially in areas with dense vegetation or cloud cover.
Data Formats: DSMs are typically available in various formats, including:
Raster formats: GeoTIFF, TIFF, PNG
Vector formats: LAS, LAZ (for LiDAR point clouds)
Applications:
Urban Planning:
Building height analysis and 3D modeling for urban development.
Assessing solar potential and shadowing effects.
Visual impact assessments of proposed structures.
Environmental Monitoring:
Making digital surface/terrain models pop Tutorial Orr
Monitoring deforestation and forest change.
Assessing flood risk and inundation zones.
Analyzing landslide susceptibility.
Disaster Management:
Assessing damage from natural disasters (e.g., earthquakes, hurricanes).
Planning evacuation routes and emergency response.
Archaeology and Cultural Heritage:
Identifying and mapping archaeological sites.
Documenting and preserving cultural heritage sites.
2. Working with DSMs in QGIS
QGIS offers a robust set of tools for working with DSMs, including:
Data Import and Export:
Importing DSMs in various formats (e.g., GeoTIFF, LAS).
Exporting DSMs in different formats and resolutions.
Data Visualization:
3D visualization using the QGIS 3D map view.
Creating contour lines and hillshades.
Generating profiles and cross-sections.
Data Analysis:
Calculating slope, aspect, and curvature.
Identifying areas of high and low elevation.
Performing volume calculations.
Data Processing:
Filtering and smoothing the DSM to remove noise.
Creating a Digital Terrain Model (DTM) by removing non-ground objects.
Generating a canopy height model (CHM) by subtracting the DTM from the DSM.
3. Key QGIS Plugins for DSM Analysis
Several QGIS plugins enhance DSM analysis capabilities:
GRASS GIS: Provides a wide range of geospatial processing tools, including terrain analysis, hydrology, and raster processing.
SAGA GIS: Offers advanced geomorphometric analysis tools, such as slope stability analysis and multi-scale analysis.
LiDAR Tools: Provides tools for working with LiDAR point cloud data, including filtering, classification, and visualization.
4. 3D Visualization in QGIS
QGIS 3D Map View: Enables interactive 3D visualization of DSMs and other geospatial data.
Customization Options: Adjust viewing angles, lighting, and materials to enhance visualization.
Fly-throughs and Animations: Create dynamic 3D visualizations for presentations and communication.
5. Case Study: Analyzing Urban Heat Island Effect using DSMs
This case study demonstrates how DSMs can be used to analyze the Urban Heat Island (UHI) effect in QGIS:
1. Acquire DSM and Land Use/Land Cover data: Obtain a DSM and a land use/land cover raster for the study area.
2. Calculate surface temperature: Use a land surface temperature (LST) product derived from satellite imagery.
3. Create urban and rural zones: Classify the land use/land cover data to identify urban and rural areas.
4. Analyze LST differences: Compare LST values between urban and rural areas.
5. Visualize results: Create 3D visualizations and maps to illustrate the spatial distribution of the UHI effect.
6. Challenges and Considerations
Data Accuracy and Quality: Ensure the accuracy and quality of the DSM data source.
Data Volume: DSMs can be large files, requiring significant processing power and storage space.
Data Processing Time: Processing large DSM datasets can be time-consuming.
Software Limitations: While QGIS offers powerful capabilities, there may be limitations for very complex analyses or specialized applications.
7. Future Trends
Integration with other technologies: Integration of DSMs with other technologies such as Building Information Modeling (BIM) and Internet of Things (IoT) will enhance their applications.
Higher resolution and accuracy: Continued advancements in data acquisition technologies will lead to higher resolution and more accurate DSMs.
Cloud-based processing: Cloud computing platforms will enable more efficient processing and analysis of large DSM datasets.
Conclusion
DSMs are essential data sources for a wide range of applications. QGIS, with its open-source nature, extensive plugin ecosystem, and user-friendly interface, provides a powerful platform for working with DSMs. By mastering the techniques outlined in this article, users can effectively analyze and visualize DSMs to gain valuable insights into the Earth’s surface and make informed decisions in various fields.
Further Reading
QGIS User Manual: [https://docs.qgis.org/latest/en/docs/user_manual/index.html](https://docs.qgis.org/latest/en/docs/user_manual/index.html)
This article provides a foundational understanding of working with DSMs in QGIS. Continued exploration and experimentation with the software and available plugins will deepen your knowledge and expand your capabilities in this domain.
